The tassometer system is an automated system for long-term monitoring of differential settlements in buildings, tunnels, and other civil engineering structures.

logo-trust-techA reliable system adapted to your works

This system consists of a series of sensors hydraulically
connected to a reference tank located in a stable area.

Each unit contains a high resolution pressure sensor that
measures the liquid level, resulting from the difference in
height between the sensor and the reference.

In addition, an additional sensor placed near the reference tank will subtract thermal variations.

These sensors can be connected to the THMlogg data acquisition system to collect pressure (height) and temperature data.

image background

Talk to our experts

Arnaud DE PRACOMTAL

Director SOCOTEC Monitoring France - Director Infrastructure & Middle East Africa

Director SOCOTEC Monitoring France - Director Infrastructure & Middle East Africa

Arnaud.DEPRACOMTAL@socotec.com
image background

Applications

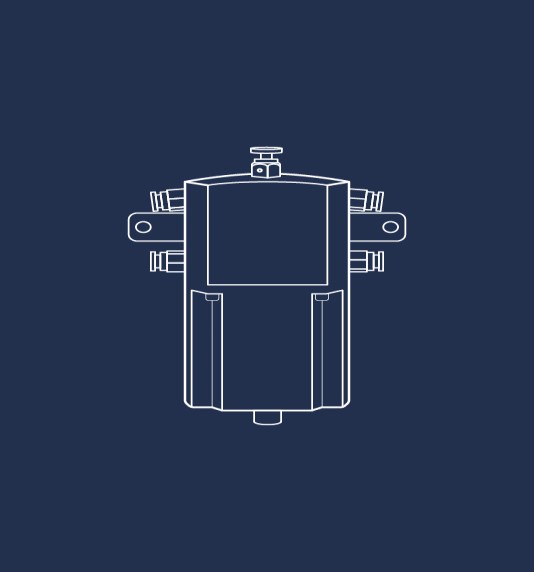

Tassometric sensor hydraulic tassometer

cementyscapteurs-tassometre
  • Stability of structures in the zones of influence of underground excavations (tunnels, deep excavations).
  • System suitable for monitoring any type of structure (historical works, buildings, ...).
  • Monitoring of structures in the vicinity of risk areas such as erosion, landslides, etc
  • Stability of structures in the zones of influence of underground excavations (tunnels, deep excavations).
  • System suitable for monitoring any type of structure (historical works, buildings, ...).
  • Monitoring of structures in the vicinity of risk areas such as erosion, landslides, etc

FEATURES

Tassometric sensor

SENSOR

Technology

Ceramic capacitive pressure senso

Measuring range

500 mm and 1000mm

Resolution

0.0002 % FS

Accuracy

0.07 to 0.08% FS

Output signal

Current (Pressure), Ohm
(Temperature)

POWER

Power supply

8 - 28DC

Consumption

6mA at 12V - 8mA at 24V

PHYSICAL PROPERTIES

IP Index

IP67

Sensor dimensions (W x H x D)

75 x 75 x mm50

Sensor material

Anodized aluminum
